Use the BOMA plugin to generate polylines

This article shows you how to use the BOMA plugin in the Archilogic Editor to automatically generate polylines

Open the plugin

To automatically generate polylines you first have to open your floor plan with the Archilogic Editor.

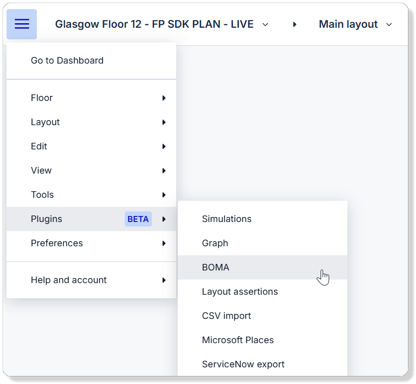

Then click the main menu button in the top-left corner of the window and select:
Plugins > BOMA

chrome_GkXQ5HYdIK

This will open the BOMA Plugin.

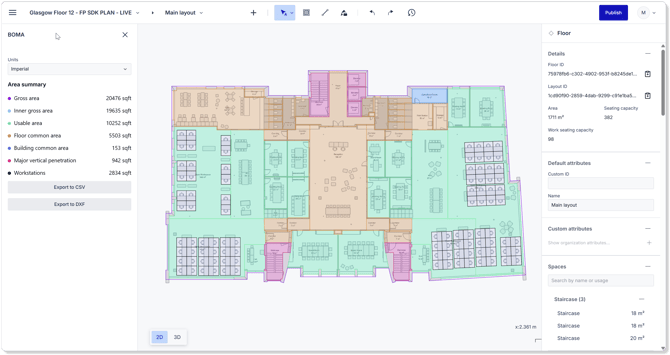

At the top of the Plugin you can switch between Imperial and Metric measurement units.

chrome_4aZ9kp0BrR

The BOMA Plugin will automacally generate polylines around rooms, spaces and workstations.

The Position of the polylines will vary depending on the room/space usages.

In order for the Plugin to draw polylines around workstations, the desk and chair combinations have to be set up as workstation components.
Click here to learn more about components.

Export

You can export your setup as a CSV or as DXF file.

If you export it as CSV you will receive a list containing Space IDs, custom names, area, BOMA category and space usage.

If you export the setup as a DXF file you can open the floor plan along with the generated polylining in other apps such as, for example, Autodesk.
