# How to export floor plans to Serraview

## Export your Archilogic floor plan as a Serraview-compatible DWG file and import it into Serraview (Eptura) in just a few clicks.



The **Serraview Export extension** for the Archilogic Editor converts your floor plan into the CAD layer structure that Serraview expects.
It shows a live preview of the export directly in the Editor and lets you configure how spaces and workstations are labelled and typed before you download the DWG file.

### Opening the extension

To get started, open your floor plan in the Archilogic editor.

Click the **main menu icon** in the top-left corner, go to **Extensions**, and select **Serraview Export** from the list.

![gimp-3_Hu3pG8RfAY](https://help.archilogic.com/hs-fs/hubfs/gimp-3_Hu3pG8RfAY.png?width=445&height=375&name=gimp-3_Hu3pG8RfAY.png)

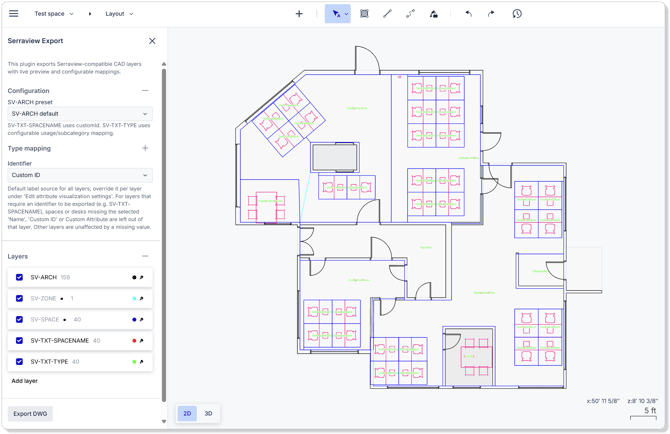

The Serraview Export panel opens on the left side of the screen, and the floor plan switches to a live CAD preview that shows exactly what will be exported. Any change you make in the panel is reflected in the preview immediately.

![chrome_VGqsmMzZg8](https://help.archilogic.com/hs-fs/hubfs/chrome_VGqsmMzZg8.png?width=670&height=435&name=chrome_VGqsmMzZg8.png)

### Configuration

At the top of the panel, you can choose a **preset**:

- **SV-ARCH default** – walls and furniture are exported together on one SV-ARCH layer
- **Split A-WALL + A-FURN** – walls and furniture are split into separate A-WALL and A-FURN layers

### Identifier

The **Identifier** dropdown defines which attribute is used as the label source for what the **SV-TXT-SPACENAME** layer displays. You can choose between **Global ID**, **Index**, **Name**, **Custom ID**, **Space usage**, **Space program**, **Space area**.

![chrome_UBhkX4K1ib](https://help.archilogic.com/hs-fs/hubfs/chrome_UBhkX4K1ib.png?width=369&height=345&name=chrome_UBhkX4K1ib.png)

By default, the extension uses the **Custom ID** of your spaces and desks. You can check these values by selecting a space or desk on the floor plan — the Custom ID is shown in the panel on the right.

- **Global ID** refers to the Asset or Space ID of the selected object and is a unique and complex ID
- **Index **refers to automatically generated unique IDs such as Space-56  or Desk-75
- **Name **refers to the **Space Name** field in the Archilogic Editor. If the field is empty, the layer will show the same automatically generated unique ID from the Index option. The same is true for desks.
- **Custom ID** refers to the **Custom ID** field in the Archilogic Editor. If the field is empty, the layer will show the same automatically generated unique ID from the Index option.
- **Space usage** refers to the subcategory of a space such as "openWorkspace". Assets will show the same automatically generated unique ID from the Index option.
- **Space program** refers to the category of a space such as "work". Assets will show the same automatically generated unique ID from the Index option.
- **Space area** refers to the square meters or square feet of a room or space. Assets will show the same automatically generated unique ID from the Index option.

### Type mapping

The **Type mapping** section controls what the **SV-TXT-TYPE** layer displays: it takes the category of each space or workstation from Archilogic (for example, *openWorkspace*) and maps it to the corresponding Serraview type.

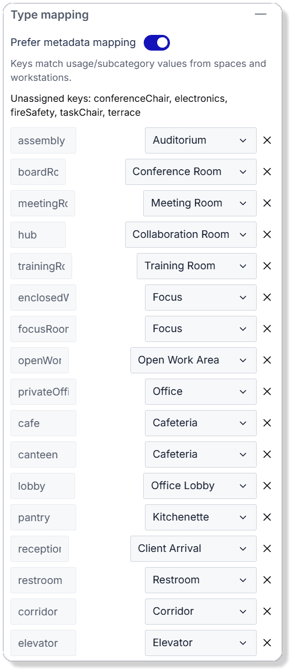

With **Prefer metadata mapping** enabled, the keys are matched against the usage/subcategory values of your spaces and workstations. The mapping table shows each Archilogic usage key on the left and the Serraview type it will be exported as on the right — for example *meetingRoom → Meeting Room*, *openWorkspace → Open Work Area*, or *pantry → Kitchenette*. If you are happy with the default mapping, you can simply leave it as it is and collapse the section again.

![chrome_hEDhTirFWv](https://help.archilogic.com/hs-fs/hubfs/chrome_hEDhTirFWv.png?width=291&height=670&name=chrome_hEDhTirFWv.png)

You can change any assignment via the dropdown, which contains the full list of Serraview types (Desk: Standard, Desk: Bench, Focus, Hotdesk, Office, Open Work Area, and many more). Keys that are not yet assigned are listed under **Unassigned keys** — simply pick a value for them if they should be included.

### Layers

The **Layers** section lists every CAD layer that will be written into the DWG file, along with the number of elements on each layer:

- **SV-ARCH** – the main architecture and furniture layer: walls and furniture
- **SV-ZONE** – the entire interior space as one zone; interior walls are disregarded while cutouts are excluded
- **SV-SPACE** – the interior space separated into its individual workstations, spaces, and rooms
- **SV-TXT-SPACENAME** – text labels that show the selected identifier of each space and desk
- **SV-TXT-TYPE** – text labels with the Serraview type of each space and desk (e.g. *Desk: Standard*, *Open Work Area*)

Use the checkbox in front of a layer to include or exclude it from the export. Ticking a single layer is also a handy way to inspect its contents in the preview — for example, ticking only **SV-TXT-SPACENAME** shows all the identifier labels that will be exported.

#### *![chrome_xXFrAeA8Rq](https://help.archilogic.com/hs-fs/hubfs/chrome_xXFrAeA8Rq.png?width=328&height=300&name=chrome_xXFrAeA8Rq.png)* Adding custom layers

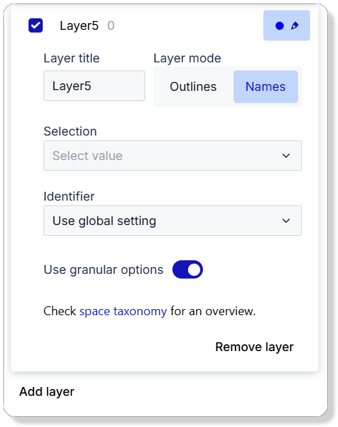

If you need an additional layer beyond the standard set, click **Add layer** at the bottom of the Layers section. For each custom layer, you can configure:

- **Layer title** – the name of the layer in the DWG file
- **Layer mode** – **Outlines** (geometry) or **Names** (text labels)
- **Selection** – which element categories are placed on the layer, e.g. all meeting room types, all work types, all socialize types (Meet, Work, Socialize, Care, Circulate, Support, Furniture, etc.)
- **Identifier** – use the global setting or override it for this layer, e.g. to display the Global ID of every exported asset and resource on a Names layer
- **Use granular options** – enable this for a more fine-grained selection based on the space taxonomy; switch it off if you prefer the simpler category list

![chrome_2JSms0t1Jg](https://help.archilogic.com/hs-fs/hubfs/chrome_2JSms0t1Jg.png?width=338&height=428&name=chrome_2JSms0t1Jg.png)

Click **Remove layer** to delete a custom layer again if you don't need it anymore.

### Exporting the DWG file

Once you are happy with the configuration and the preview, make sure all the layers you need are selected, then click **Export DWG** at the bottom of the panel and save the file to your computer.

If you want to start over, you can click the **Reset layer configuration** link to restore the default settings.

### Importing into Serraview

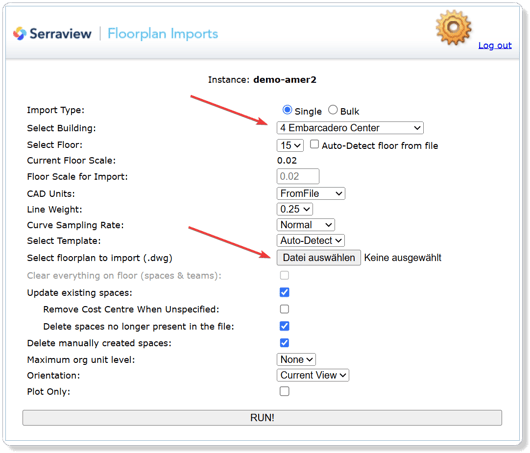

In Serraview, open the **Floorplan Imports** tool. There are only two steps you have to do here: select the correct **building** (and floor), then choose the exported **.dwg** file under *Select floorplan to import*. Leave the remaining CAD settings on their defaults (or adjust them to your needs) and click **RUN!**.

![chrome_HF2gl8zTmx](https://help.archilogic.com/hs-fs/hubfs/chrome_HF2gl8zTmx.png?width=530&height=453&name=chrome_HF2gl8zTmx.png)

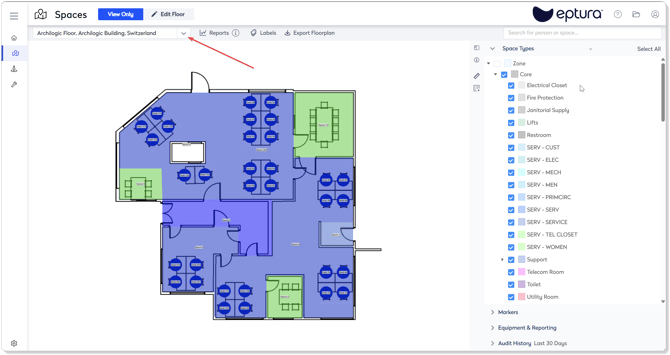

Once the file has been uploaded, go to Serraview Spaces, select the right region, building, and floor — you will find the floor plan you exported from Archilogic there and can continue working with it: the spaces, desks, identifiers, and space types are all in place.

![chrome_VhCpaQrXGa](https://help.archilogic.com/hs-fs/hubfs/chrome_VhCpaQrXGa.png?width=670&height=355&name=chrome_VhCpaQrXGa.png)
